ELECROW 7 Inch Touch Screen Monitor for Raspberry Pi Screen 1024×600 IPS LCD Mini Monitor for Raspberry Pi 5 4 3 400 Windows 11/10/8/7 Driver Free

Price: $45.99
(as of Aug 24, 2024 05:11:41 UTC – Details)

Product Description

ELECROW 7 Inch Touchscreen Display

This 7 inch small LCD supports high resolution of 1024×600 and capacitive touch screen.

It upgrades to IPS screen with larger visible angle and more clear display effect.

It supports manual backlight control, backlight switch can be turn off to lower power consumption.

With capacitive touch control, plug and play, no driver needed.

Wide Application

When works with Raspberry Pi, supports Raspbian, Ubuntu, Kodi, Win10 IOT, single touch, free driver.

When work as a computer monitor, supports Windows 11/10/8/7, plug & play, 5 point touch, free driver.

When work as a general purpose HDMI-compatible monitor, touch function NOT available. Supports popular game consoles, compatible with XBOX, PS, Switch etc, plug & play, no touch.

Note: it’s recommended to use 5V3A or above power supply to ensure enough power.

When intended for Raspberry Pi 4, for the system after 2021-10-30, for example on Bullseye, please modify “dtoverlay = vc4-kms-v3d” to “dtoverlay = vc4-fkms-v3d” in the config file, otherwise it may fail to start. But on Buster, please comment out “dtoverlay = vc4-fkms-V3D” by adding #.

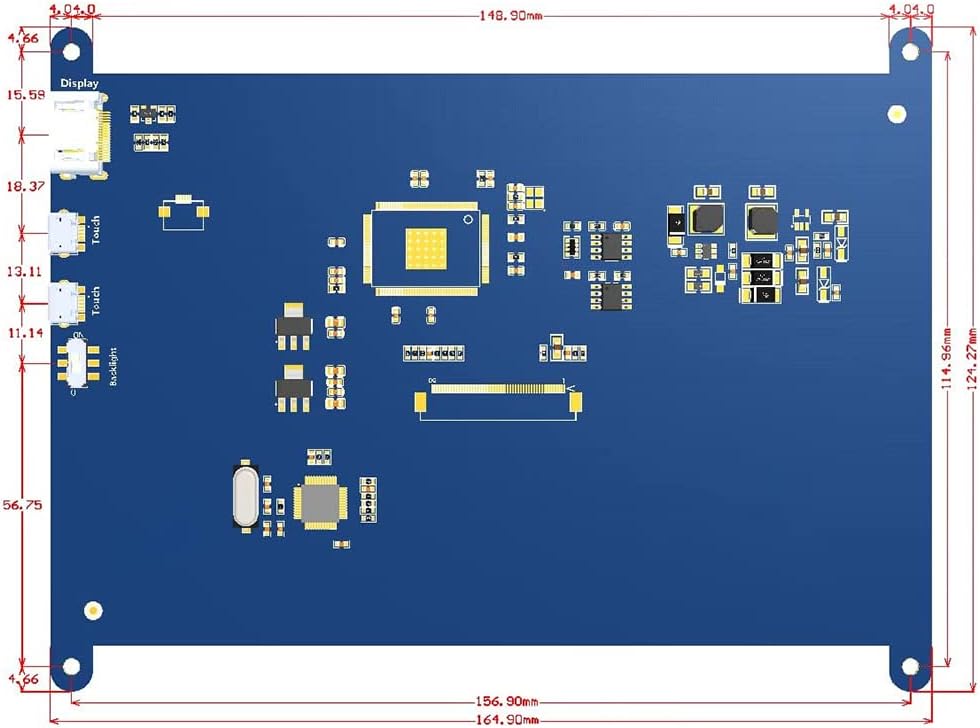

Hareware Description

HD interface: For connecting motherboard and LCD monitor for displaying.

Touch interface: For power supply and touch output, 2 same ports designed to prevent insufficient power supply when needs extra power.

Backlight switch: Controls the backlight turned on and off to save power.

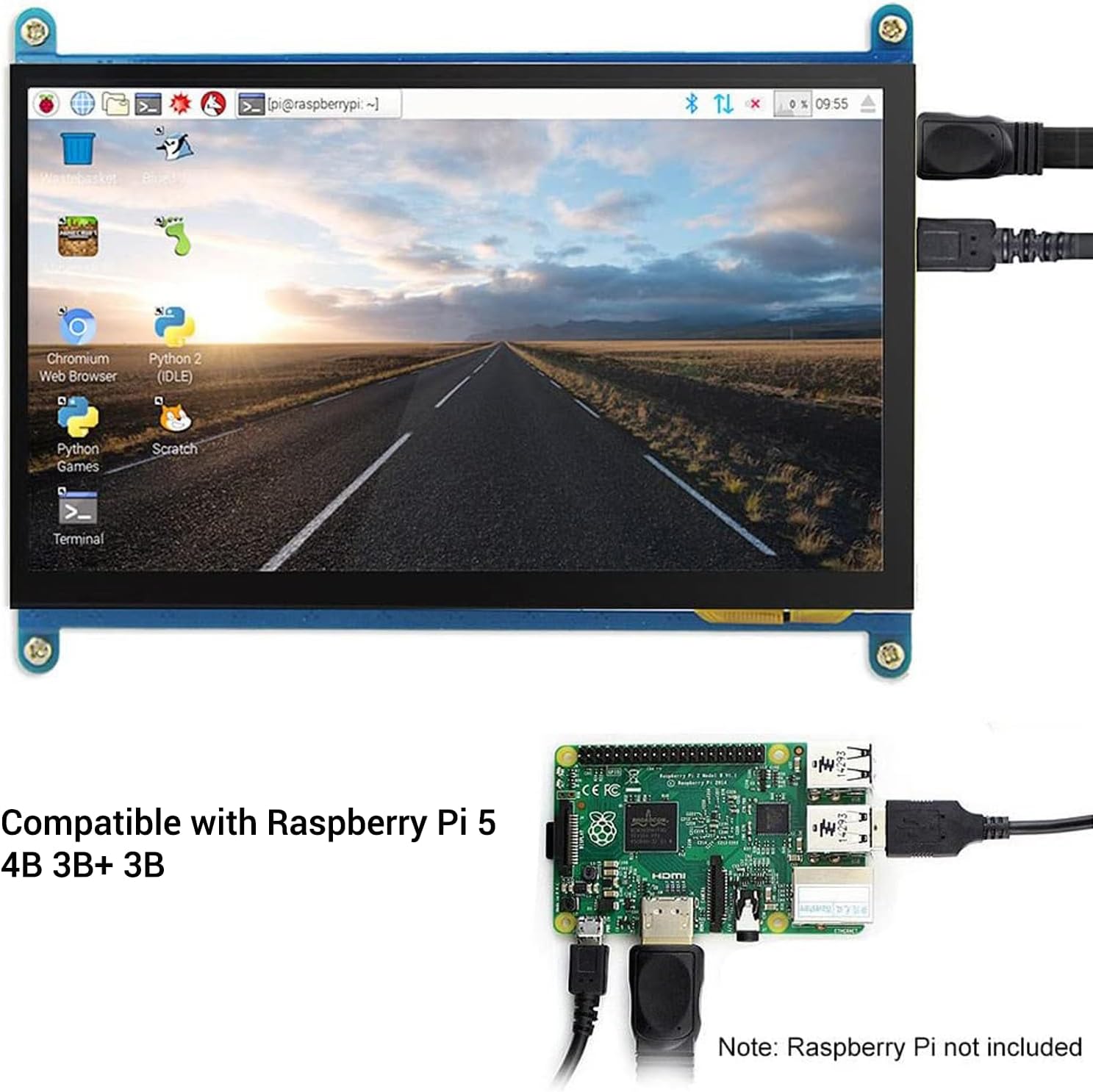

Connected to RPI 4

Please connect to HDMI-0 port when intended for Raspberry Pi 4.

* When connecting to RPi 4, please power the screen with an external power supply, and then disconnect the external power after booting up the Pi to ensure that the touch function works properly.

Touch Function

To achieve display and touch at the same time, please use a USB data cable to connect the screen and the USB port of the main control device.

*The touch function can be used normally only if the screen is powered directly through the usb of the device. If the monitor is connected to an external power supply at the same time, the touch function is not available.

Package List 7 Inch Touchscreen x1 HD cable x1 USB cable x1 Micro HD adapter x1 Copper screws pack (4pcs) x1 DVDx1

Specifications

Size: 7.0 (inch)

Resolution: 1024 × 600 (dots)

Screen Panel: IPS

Touch: 5 point capacitive touch max

Dimensions: 164.9 x 124.27 (mm)

Active Area: 153.84 x 85.63 (mm)

Power Dissipation: 0.74A*5V

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars
546

4.4 out of 5 stars
248

4.5 out of 5 stars
227

4.1 out of 5 stars
99

2.5 out of 5 stars
3

4.8 out of 5 stars
11

Price

$42.99$42.99 $47.99$47.99 $45.99$45.99 $54.99$54.99 $59.44$59.44 $59.99$59.99

Screen Size
5 Inch 5 Inch 7 Inch 7 Inch 10.1 Inch 7 Inch

Screen Resolution
800×480 800×480 1024×600 1024×600 1024×600 1024×600

Others
Earphone Speaker Earphone & Speaker Earphone & Speaker

Portable Monitor: 7 inch mini monitor with 1024×600 resolution lcd screen; This small LCD screen upgrades to IPS screen with larger visible angle and better image quality. It’s small & portable
Simple Use: Plug and play, as easy as plugging micro USB cable for touch and power supply, HD cable for display, both cables included in the package, no driver needed
Touchscreen: The USB capacitive touch control work with Raspberry Pi and windows PC, free-driver, just connect the 7” screen by the USB port of the computer
PC Extension Screen or Others: Can be used as a general-purpose 7 inch screen connected to your HDMI-compatible devices like TV box, game console, or mounted inside your computer as PC temperature display, etc
Pi Screen: Can be work with Raspberry Pi, compatible with Raspberry Pi 5 4 3, BB Black, Banana Pi and other mini PC
